    HOT 4000 - A transfer press for large volumes!

    A high-quality transfer press with the ability to process garments in large volumes!

    • Check

      SWEDISH-MADE

    • Check

      ERGONOMIC

    • Check

      INDUSTRIAL CAPACITY

    TRANSFER PRESS

    Hot 4000 - An industrial heat press for large volumes!

    Hot 4000 is our largest and most efficient transfer press. With this printing machine, you can process garments in large volumes in the shortest possible time, combined with great user-friendliness. This makes it an easy choice for those in need of industrial capacity. In developing the Hot 4000, we have taken maximum consideration for the operator's work environment and safety without complicating the use of the machine.

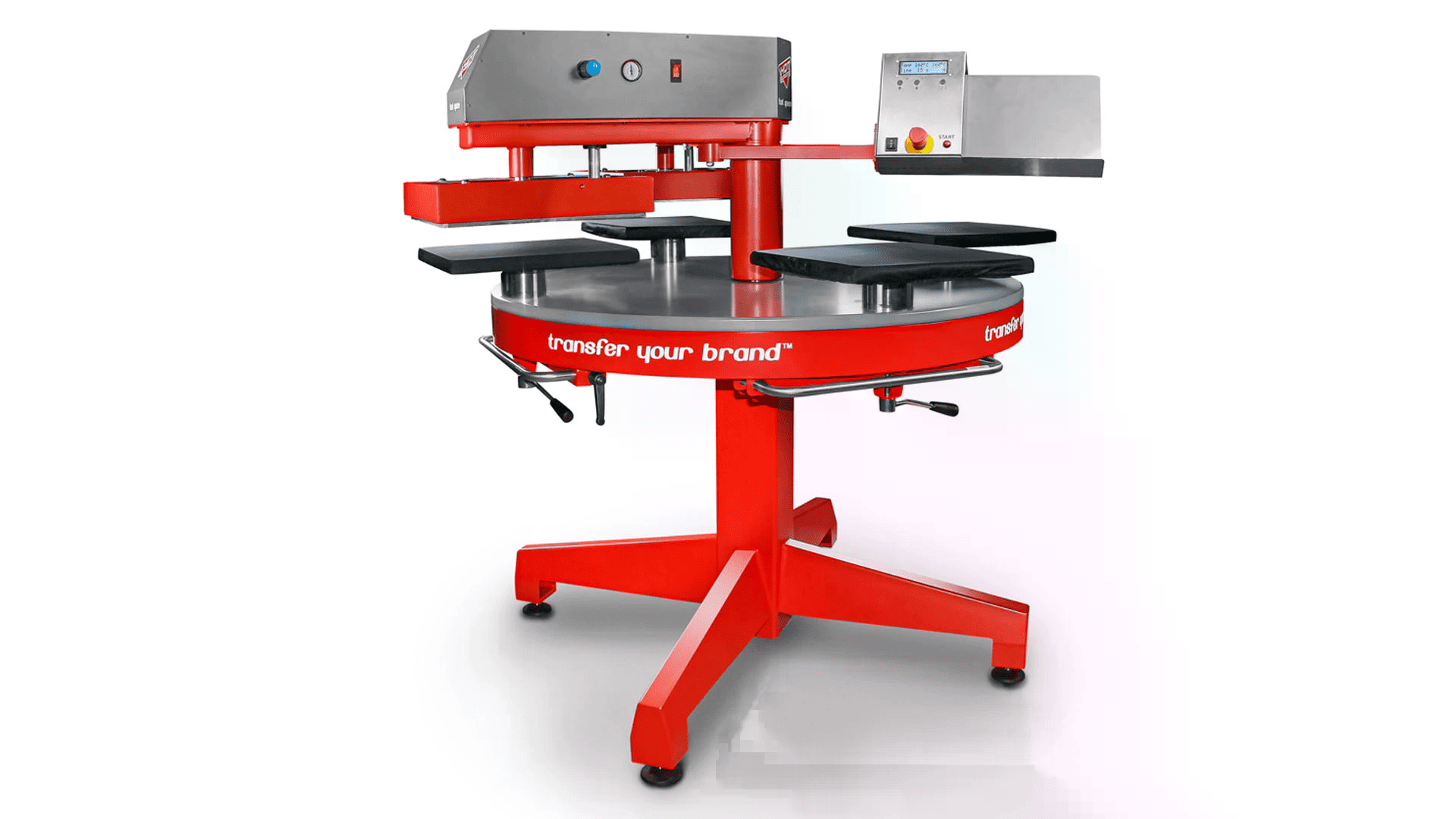

    Hot 4000 - Industrial heat press with automatic carousel, red machine designed for high-volume production.

    Hot 4000

    An industrial heat press for high volumes!

    Suitable for large volumes
    Efficient
    Ergonomic

    • Stable temperature
    • Powerful
    • Quiet operation

    Product specifications

    • Size icon

      Size

      150 cm

    • Pressure

      Pressure

      Pneumatic, continuously adjustable 1–6 bar

    • Timer

      Timer

      From 1 sec to 60 sec

    • Temperature

      Temperature

      Up to + 200ºC.

    • Power

      Power

      2 200 W

    • Weight

      Weight

      300 kg

    • Operation

      Operation

      Automatic carousel at the push of a button. Height-adjustable working height

    • Made in Sweden

      Made in Sweden

      Developed and manufactured in-house

    • Service

      Service

      Offers fast service

    Delivered with subplates:

    • 4 pc = 38 x 38 cm

    Hot 4000 - Instructional Video

    In this video, we go through all the features and benefits of the Hot 4000. Watch the video to learn how to use our largest and most efficient transfer press.

    Made in Sweden – Optimized for easy and efficient use

    To achieve the best results, a machine with stable heat and guaranteed press force is required. Therefore, we have chosen to design and manufacture our presses ourselves, in Sweden, using Swedish steel. With the right transfer press and application, transfer prints last throughout the garment's lifecycle, even with wear, washing, and tumble drying.

    Heat and Cooling

    The Hot 4000 is equipped with two upper plates, one with heat and pressure and one cooling plate. This allows you to press all heat transfers with "Cold Peel" without having to wait for the plastic carrier to cool before removing it. During application, the lower plates rotate to the heat and cooling plates, allowing preparation of the next garment during application. The press is equipped with a height-adjustable table for optimal ergonomics regardless of the operator's height.

    The Hot 4000 is equipped with a support shelf, a tablet holder, and a simple mounting mechanism for the lower plates. The press is easy to operate and provides quick application with high quality. With proper handling, it guarantees you a perfect result every time.

    Hot 4000

    Stable temperature with the right pressure

    Our heat presses have a 5 cm thick heating iron that insulates heat and ensures a stable temperature of up to +200ºC throughout the entire application process. The Hot 4000 transfer machine is equipped with a built-in timer. The timer can be set from 1 to 60 seconds, and at the end of the application, the heating iron lifts up while the carousel rotates.

    The Hot 4000 transfer press is delivered with:

    check_icon.svg

    4 subplate measuring 38 x 38 cm

    We manufacture our own transfer presses

    The collaboration with our subsidiary started in 2015, when they were tasked with developing a transfer press for industrial use, resulting in the Hot 4000. Shortly thereafter, the Hot 2000 was created, a transfer press with professional performance. The collaboration intensified, and in 2019 Hot Screen acquired the company. Production still takes place in the same facilities, focusing on Swedish steel, durability, and long-term performance.

    Our Hot heat presses are designed for long lifespan and high durability. With heavy continuous use, they may require maintenance, which we perform in our workshop in Kinna.
    We offer fast service and the possibility to borrow a press during maintenance, allowing you to minimize downtime. Our dedicated service team is always available for advice and support, so you can quickly resume production.
